•  Applicable Conditions

Working pressure: 0.1 through 2.5 (MPa)
Working temperature: -20 through 450 (℃)
Service life: 1000 (times)
Flange：GB、ANSI、JIS、DIN etc


• Product Specification

Nominal ID(DN): Φ50 through 6000 (mm)

•  STRUCTURE

• Material

1.Bellow：Stainless steels 304 316L 321 254 309 Inconel625 31803 etc
2.Flange、weld Ends：Carbon steel Stainless steels etc
3.Tie rod Nuts：Carbon steel Stainless steels etc

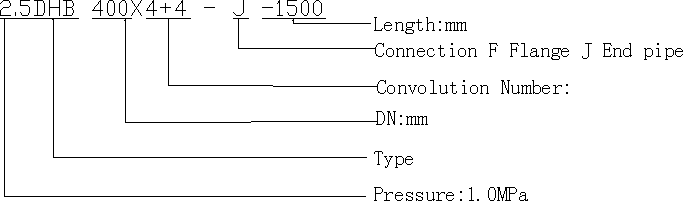

• The product code consists of following elements　

•  Guides for expansion Joint installation

1. The expansion joint shall be installed according to the engineering drawing of pipe line and the expansion joint installations
2. In order to insure proper function of any expansion joints, it is necessary that all pipe lines in which expansion joints are located be suitably guided and anchored. The guides and anchors must be installed strictly in accordance to relevant technical documentation. Please refer to the “guideline for installation of Expansion Joints” about the principle of using guides and anchors.
3. Since the bellows used in expansion joints are made of thin stainless steel sheets, special attention shall be paid when transporting, handing and welding to avoid damage of bellows caused by dents, scores, arc strikes and weld spatters.
4. Any foreign laterals in the bellows and pipes shall be removed to ensure the proper function of expansion joints before installation.
5. If the flow direction is specified, be sure to install expansion joint with the proper orientation with the respect of flow direction arrow.
6. No movement of the expansion joint (such as axial compression or extension, lateral offset, or rotation) due to piping misalignment shall be imposed during installation so as to ensure proper function of the bellows.

• Date sheet

产品性能参数
PN MPa	Product type	Dia DN （mm）	Yo=Lateral Movement (mm) Kyo= Lateral spring rate N/mm				Max Dia B(mm)	End pipe doxS (mm)
			Overall Length （mm）
			1500	2000	2500	3000
0.6	6DHB80x8—J—L	80	±200／1.1	±310／0.5	±415／0.2	Yo/Kyo	280	φ89x4
	6DHBl00x8—J—L	100	±170／1.8	±260／0.8	±355／0.4		320	φ108x4.5
	6DHBl25x8—J—L	125	±140／3	±215／1.3	±290／0.7		370	φ133x4.5
	6DHBl50x8—J—L	150	±118／4.7	±180／2.1	±245／1.2		400	φ159x4.5
	6DHBS200x8—J—L	200	±185／9	±295／3.7	±410／2	±520／1.2	456	φ219x6
	6DHBS250x8—J—L	250	±150／ 15.9	±240／6.6	±335／3.5	±425／2.2	516	φ273x9
	6DHBS300x8—J—L	300	±155／19.9	±255／8.1	±355／4.4	±455／2.7	600	φ325x9
	6DHBS350x8—J—L	350	±115／36.7	±200／13.7	±290／7.1	±380／4.3	650	φ377x10
	6DHBS400x8—J—L	400	±105／50.6	±180／19	±255／9.8	±335／6	700	φ426x10
	6DHBS450x8—J—L	450	±80／89.9	±145／30.3	±215／15	±255／8.9	750	φ478x10
	6DHBS500x8—J—L	500	±70／118	±130／39.7	±190／19.7	±250／11.7	800	φ529x10
	6DHBS600x8—J—L	600		±135／85.9	±210／40.4	±285／23.4	900	φ630x10
	6DHBS700x8—J—L	700		±120／117.5	±185／55.4	±250／32	990	φ720x10
	6DHBS800x8—J—L	800		±105／162.1	±165／76.4	±225／44.2	1090	φ820x10
	6DHBS900x8—J—L	900		±95／216.7	±145／102.1	±198／59.1	1190	φ920x10
	6DHBSl000x8—J—L	1000		±107／183.8	±165／86.8	±225／50.1	1290	φ1020x10
1.0	10DHB80x8—J—L	80	±165／1.8	±3255／0.8	±345／0.4		280	φ89x4
	10DHBl00x8—J—L	100	±140／3	±215／1.3	±285／0.7		320	φ108x4.5
	10DHBl25x8—J—L	125	±115／5	±175／2.2	±235／1.3		370	φ133x4.5
	10DHBl50x8—J—L	150	±95／8.1	±145／3.6	±195／2		400	φ159x4.5
	10DHBS200x8—J—L	200	±150／14.9	±240／6.2	±335／3.4	±430／2.1	456	φ219x6
	10DHBS250x8—J—L	250	±120／26.8	±195／11.1	±270／6	±345／3.7	516	φ273x9
	10DHBS300x8—J—L	300	±125／32.8	±207／13.4	±290／7.2	±370／4.5	600	φ325x9
	10DHBS350x8—J—L	350	±95／61.1	±165／22.9	±235／11.9	±305／7.2	650	φ377x10
	10DHBS400x8—J—L	400	±83／85	±145／31.9	±205／16.5	±265／10.1	700	φ426x10
	10DHBS450x8—J—L	450	±63／151.7	±118／51.1	±170／25.3	±225／15	750	φ478x10
	10DHBS500x8—J—L	500	±55／199.9	±15／67.3	±153／33.3	±200／19.8	800	φ529x10
	10DHBK600x8—J—L	600		±105／136	±165／64.1	±220／37.1	900	φ630x10
	10DHBK700x8—J—L	700		±95／186.3	±145／87.8	±195／50.8	990	φ720x10
	10DHBK800x8—J—L	800		±83／257.2	±127／121.2	±173／70.4	1090	φ820x10
	10DHBK900x8—J—L	900		±73／344.1	±113／162.1	±152／93.8	1190	φ920x10
	10DHBSKl000x8—J—L	1000		±100／475.8	±155／224.2	±210／129.8	1290	φ1020x10
1.6	16DHBK80x8—J—L	80	±195／2.6	±300／1.1	±400／0.6		280	φ89x4
	16DHBKl00x8—J—L	100	±165／4	±255／1.8	±340／1		320	φ108x4.5
	16DHBKl25x8—J—L	125	±138／6.8	±210／3	±280／1.7		370	φ133x4.5
	16DHBKl50x8—J—L	150	±115／10.8	±175／4.8	±235／2.7		400	φ159x4.5
	16DHBSK200x8—J—L	200	±155／31.9	±250／13.41	±350／7.2	±440／4.5	456	φ219x6
	16DHBSK250x8—J—L	250	±125／57.3	±200／23.7	±280／12.9	±355／8	516	φ273x9
	16DHBSK300x8—J—L	300	±127／94.4	±210／30.5	±290／16.4	土37010.3	600	φ325x9
	16DHBSK350x8—J—L	350	±95／138.5	±165／52	±235／27	±30516.4	650	φ377x10
	16DHBSK400x8—J—L	400	±85／192.6	±145／72.3	±207／37.5	±270／22.9	700	φ426X10
	16DHBSK450x8—J—L	450	±65／343.7	±118／115.8	±172／57.4	±227／34.1	750	φ478x10
	16DHBSK500x8—J—L	500	±57／452.9	±105／152.6	±155／75.6	±205／45	800	φ529x10
	16DHBSK600x8—J—L	600		±105／279.7	±163／131.8	±220／76.3	900	φ630x10
	16DHBSK700x8—J—L	700		±95／382.8	±145／180.4	±195／104.4	990	φ720x10
	16DHBSK800x8—J—L	800		±83／527.9	±127／248.8	±172／144	1090	φ820x10
	16DHBSK900x8—J—L	900		±73／705.8	±112／332.6	±155／192.5	1190	φ920x10
	16DHBSKl000x8—J—L	1000		±77／904.9	±120／426.5	±160／246，9	1290	φ1020x10
