•  Product Features

    A single expansion joints consists of a bellows and two end pipes (or two flanges) . It is designed to absorb axial movement by the use of bellows flexibility. End pipes (or Flanges) are designed to connect the expansion joint with pipe line and the fixed bolts are designed to restrict the movement of bellows during shipment.A single expansion joints are mainly used to absorb axial movement, such as that caused by thermal expansion or contraction of a pipeline, duct or vessel along the axis.

•  Applicable Conditions

Working pressure: 0.1 through 2.5 (MPa)
Working temperature: -20 through 450 (℃)
Service life: 1000 (times)
Flange：GB、ANSI、JIS、DIN etc


• Product Specification

Nominal ID(DN): Φ50 through Φ10000 (mm)

•  STRUCTURE

• Material

1.Bellow：Stainless steels 304 316L 321 254 309 Inconel625 31803 etc
2.Flange、weld Ends：Carbon steel Stainless steels etc
3.Tie rod Nuts：Carbon steel Stainless steels etc

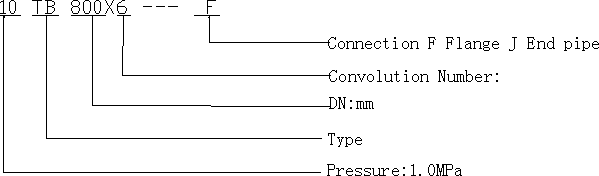

• The product code consists of following elements　

•  Guides for expansion Joint installation

1. The expansion joint shall be installed according to the engineering drawing of pipe line and the expansion joint installations
2. In order to insure proper function of any expansion joints, it is necessary that all pipe lines in which expansion joints are located be suitably guided and anchored. The guides and anchors must be installed strictly in accordance to relevant technical documentation. Please refer to the “guideline for installation of Expansion Joints” about the principle of using guides and anchors.
3. Since the bellows used in expansion joints are made of thin stainless steel sheets, special attention shall be paid when transporting, handing and welding to avoid damage of bellows caused by dents, scores, arc strikes and weld spatters.
4. Any foreign laterals in the bellows and pipes shall be removed to ensure the proper function of expansion joints before installation.
5. If the flow direction is specified, be sure to install expansion joint with the proper orientation with the respect of flow direction arrow.
6. No movement of the expansion joint (such as axial compression or extension, lateral offset, or rotation) due to piping misalignment shall be imposed during installation so as to ensure proper function of the bellows.

• Date sheet

Date Sheet
PN MPa	Product type	Nominal Diameter DN（mm）	Bellows effctive area A(CM2)	Convolution number （n）	Overall Length L(mm）	Axial Movement X(mm)	Axial Spring rate kX。 N／mm	Max Diameter B(mm)	End pipe doxS (mm)
0.6	6TB32x10—F	32	18	10	190	24	16	130
	6TB40x10—F	40	18	10	190	24	16	130
	6TB50x10—F	50	28	10	210	33	24	140
	6TB65x10—F	65	56	10	225	35	38	160
	6TB80x8—J	80	108	8	364	51	171	229	φ89x4
	6TBl00x8—J	100	145	8	364	50	199	248	φ108x4
	6TBl25x8—J	125	204	8	364	49	238	273	φ133x4.5
	6TBl50x8—J	150	275	8	364	48	279	299	φ159x4.5
	6TB200x8—J	200	547	8	496	122	212	399	φ219x6
	6TB250x8—J	250	794	8	496	121	247	453	φ273x8
	6TB300x8—J	300	1104	8	570	154	220	585	φ325x8
	6TB350x8—J	350	1432	8	570	153	245	637	φ377x10
	6TB400x8—J	400	1787	8	570	151	271	686	φ426x10
	6TB450x8—J	450	2198	8	570	149	299	738	φ478x10
	6TB500x8—J	500	2642	8	570	147	327	789	φ529x10
	6TB600x8—J	600	3759	8	816	215	417	890	φ630x10
	6TB700x6—J	700	4776	6	696	162	599	980	φ720x10
	6TB800x6—J	800	6079	6	696	161	649	1080	φ820x10
	6TB900x6—J	900	7540	6	796	159	700	1180	φ920x10
	6TBl000x6—J	1000	9328	6	796	199	479	1280	φ1020x10
	6TBll00x6—J	1100	11118	6	796	197	517	1380	φ1120x10
	6TBl200x6—J	1200	13066	6	796	194	556	1480	φ1220x12
	6TBl300x4—J	1300	15153	4	676	43	1985	1580	φ1320x14
	6TBl400x4—J	1400	17413	4	676	42	2128	1680	φ1420x14
	6T91500x4—J	1500	19831	4	676	42	2270	1780	φ1520x14
	6TBl600x4—J	1600	22405	4	676	42	2410	1880	φ1620x14
	6TBl700x4—J	1700	25137	4	700	42	2553	1980	φ1720x14
	6TBl800x4—J	1800	28055	4	700	35	5218	2080	φ1820x14
	6TB1900x4—J	1900	31103	4	700	35	5493	2180	φ1920x14
	6TB2000x4—J	2000	34801	4	800	52	3130	2360	φ2020x14
	6TB2200x4—J	2200	41765	4	800	45	5875	2560	φ2220x16
	6TB2400x4—J	2400	49323	4	800	44	6388	2760	φ2420x16
1.0	10TB32x10—F	32	18	10	190	20	76	140
	10TB40x10—F	40	18	10	190	20	76	140
	10TB50x10—F	50	28	10	210	25	94	160
	10TB65x10—F	65	56	10	225	26	127	180
	10TB80x8—J	80	108	8	364	42	280	229	φ89x4
	10TBl00x8—J	100	145	8	364	41	331	248	φ108x4
	10TBl25x8—J	125	204	8	364	40	400	273	φ133x4.5
	10TBl50x8—J	150	275	8	364	38	472	299	φ159x4.5
	10TB200x8—J	200	547	8	496	101	348	399	φ219x6
	10TB250x8—J	250	794	8	496	98	421	453	φ273x8
	10TB300x8—J	300	1104	8	570	126	359	585	φ325x8
	10TB350x8—J	350	1432	8	570	124	407	637	φ377x10
	10TB400x8—J	400	1787	8	570	122	454	686	φ426x10
	10TB450x8—J	450	2198	8	570	119	503	738	φ478x10
	10TB500x8—J	500	2642	8	570	117	552	789	φ529x10
	10TB600x8—J	600	3759	8	816	167	665	890	φ630x10
	10TB700x6—J	700	4776	6	696	126	956	980	φ720x10
	10TB800x6—J	800	6079	6	696	125	1035	1080	φ820x10
	10TB900x6—J	900	7540	6	796	123	1116	1180	φ920x10
	10TBl000x6—J	1000	9328	6	796	188	1241	1280	φ1020x10
	10TBll00x6—J	1100	11118	6	796	186	1339	1380	φ1120x10
	10TBl200x6—J	1200	13066	6	796	183	1438	1480	φ1220x12
1.6	16TB32x10—F	32	18	10	190	15	120	140
	16TB40x10—F	40	18	10	190	]5	120	140
	16TB50x10—F	50	28	10	210	17	96	160
	16TB65x10—F	65	56	10	225	17	127	180
	16TB80x8—J	80	108	8	364	50	388	229	φ89x4
	16TBl00x8—J	100	145	8	364	49	452	248	φ108x4
	16TBl25x8—J	125	204	8	364	48	539	273	φ133x4.5
	16TBl50x8—J	150	275	8	364	47	632	299	φ159x4.5
	16TB200x8—J	200	547	8	496	105	744	399	φ219x6
	16TB250x8—J	250	794	8	496	103	900	453	φ273x8
	16TB300x8—J	300	1104	8	570	128	814	585	φ325x8
	16TB350x8—J	350	1432	8	570	126	922	637	φ377x10
	16TB400x8—J	400	1787	8	570	124	1028	686	φ426x10
	16TB450x8—J	450	2198	8	570	122	1139	738	φ478x10
	16TB500x8—J	500	2642	8	570	119	1250	789	φ529x10
	16TB600x8—J	600	3759	8	816	168	1358	890	φ630x10
	16TB700x6—J	700	4776	6	696	126	1951	980	φ720x10
	16TB800x6—J	800	6079	6	696	125	2113	1080	φ820x10
	16TB900x6—J	900	7540	6	796	124	2278	1180	φ920x10
	16TBl000x6—J	1000	9348	6	796	144	2356	1280	φ1020x10
	16TBll00x6—J	1100	11140	6	796	142	2556	1380	φ1120x10
	16TBl200x6—J	1200	13090	6	796	140	2758	1480	φ1220x12
