•  Product Features

     A universal expansion joint are consists of two bellows joined by a common connector and tie rods. It is designed to absorb lateral deflection of pipe line in any plane.

•  Applicable Conditions

Working pressure: 0.1 through 2.5 (MPa)
Working temperature: -20 through 450 (℃)
Service life: 1000 (times)
Flange：GB、ANSI、JIS、DIN etc


• Product Specification

Nominal ID(DN): Φ50 through 6000 (mm)

•  STRUCTURE

• Material

1.Bellow：Stainless steels 304 316L 321 254 309 Inconel625 31803 etc
2.Flange、weld Ends：Carbon steel Stainless steels etc
3.Tie rod Nuts：Carbon steel Stainless steels etc

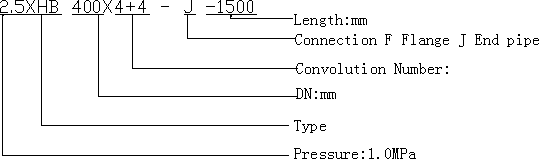

• The product code consists of following elements　

•  Guides for expansion Joint installation

1. The expansion joint shall be installed according to the engineering drawing of pipe line and the expansion joint installations
2. In order to insure proper function of any expansion joints, it is necessary that all pipe lines in which expansion joints are located be suitably guided and anchored. The guides and anchors must be installed strictly in accordance to relevant technical documentation. Please refer to the “guideline for installation of Expansion Joints” about the principle of using guides and anchors.
3. Since the bellows used in expansion joints are made of thin stainless steel sheets, special attention shall be paid when transporting, handing and welding to avoid damage of bellows caused by dents, scores, arc strikes and weld spatters.
4. Any foreign laterals in the bellows and pipes shall be removed to ensure the proper function of expansion joints before installation.
5. If the flow direction is specified, be sure to install expansion joint with the proper orientation with the respect of flow direction arrow.
6. No movement of the expansion joint (such as axial compression or extension, lateral offset, or rotation) due to piping misalignment shall be imposed during installation so as to ensure proper function of the bellows.

• Date sheet

产品性能参数
PN MPa	Product type	Dia. DN （mm）	Bellows Effctive Area A(CM2)	Axial X(mm)	Axial Spring rate kX。kX。N ／mm	Yo=Lateral Movement (mm) Kyo= Lateral spring rate N/mm				Max dia. B(mm)	End pipe
						Overall Length （mm）					doxS (mm)
						1000	1500	2000	2500		Flange（JB81-59
0.25	2.5XHBl00x8—J—L	100	153	57	115	Yo=125	261	398	535	308	φ108x4
	2.5XHBl00x8—F—L					Kyo=4.1	1.1	0.48	0.27		φ170	4—φ18
	2.5XHBl50x8—J—L	150	297	60	158	92	191	191	392	359	φ159x5
	2.5XHBl50x8—F—L					10.9	2.9	1.3	0.72		φ225	8—φ18
	2.5XHB200x8—J—L	200	527	11l	106	111	249	390	531	439	φ219x6
	2.5XHB200x8—F—L					15	3.7	1.6	0.91		φ280	8—φ18
	2.5XHB250x8—J—L	250	769	108	126	121	204	319	425	493	φ273x8
	2.5XHB250x8—F—L					15.5	6.4	2.8	1.6		φ335	12—φ18
	2.5XHB300x8—J—L	300	1064	138	110	128	209	332	456	545	φ325x8
	2.5XHB300x8—F—L					16	8.1	3.5	1.9		φ395	12—φ23
	2.5XHB350x8—J—L	350	1257	138	119	135	170	283	397	627	φ377x8
	2.5XHB350X8—F—L					16.8	13	5.1	2.8		φ445	12—φ23
	2.5XHB400x8—J—L	400	1605	138	131	149	248	348	448	676	φ426x8
	2.5XHB400x8—F—L					18	7.3	3.9	2.4		φ495	16—φ23
	2.5XHB450x8—J—L	450	1987	135	145	132	219	307	396	728	φ478x8
	2.5XHB450x8—F—L					25	9.9	9.3	3.3		φ550	16—φ23
	2.5XHB500x8—J—L	500	2411	132	160	117	195	274	353	779	φ529x8
	2.5XHB500x8—F—L					33	13	7.1	4.4		φ600	16—φ23
	2.5XHB600x8—J—L	600	3452	210	135	107	195	274	353	880	φ630x8
	2.5XHB600x8—F—L					65	13	7.1	4.4		φ705	20—φ25
	2.5XHB700x8—J—L	700	4742	219	145	95	184	275	368	1010	φ720x10
	2.5XHB700x8—F—L					96	32	16	9.3		φ810	20—φ25
	2.5XHB800X8—J—L	800	6041	222	155	85	164	245	328	1110	φ820x10
	2.5XHB800X8—F—L					131	44	21	13		φ920	24—φ30
0.6	6XHBl00x8—J—L	100	154	45	210	96	200	306	411	308	φ108x4
	6XHBl00x8—F—L					7.6	2.0	0.89	0.5		φ170	4—φ18
	6XHBl50x8—J—L	150	299	42	298	65	136	207	279	359	φ159x5
	6XHBl50x8—F—L					21	5.4	2.4	1.4		φ225	8—φ18
	6XHB200x8—J—L	200	531	70	326	72	160	250	341	439	φ219x6
	6XHB200x8—F—L					47	11	5.0	2.8		φ280	8—φ18
	6XHB250x8—J—L	250	774	69	400	69	127	199	271	493	φ273x9
	6XHB250X8—F—L					50	20	9.0	5.0		φ335	12—φ18
	6XHB300x8—J—L	300	1069	88	336	75	134	213	292	545	φ325x9
	6XHB300x8—F—L					52	25	11	6.0		φ395	12—φ23
	6XHB350x8—J—L	350	1263	87	266	88	107	178	250	627	φ377x9
	6XHB350x8—F—L					55	40	16	8.5		φ445	12—φ23
	6XHB400x8—J—L	400	1612	85	415	92	154	215	278	676	φ426x9
	6XHB400x8—F—L					58	23	12	7.8		φ495	16—φ23
	6XHB450x8—J—L	450	1995	82	464	81	134	189	243	728	φ478x9
	6XHB450x8—F—L					80	32	17	11		φ550	16—φ23
	6XHB500x8—J—L	500	2419	81	513	72	120	169	217	779	φ529x9
	6XHB500x8—F—L					107	43	23	14		φ600	16—φ23
	6XHB600X8—J—L	600	3463	145	365	74	142	213	285	880	φ630x9
	6XHB600x8—F—L					177	59	29	17		φ705	20—φ25
	6XHB700x8—J—L	700	4754	144	408	62	119	179	239	1010	φ720x10
	6XHB700x8—F—L					271	90	44	26		φ810	20—φ25
	6XHB800x8—J—L	800	6055	141	438	54	104	156	208	1110	φ820x10
	6XHB800x8—F—L					371	124	61	36		φ920	24—φ30
